High Precision Spectacle Telescope Mounting Jig.
This high precision instrument was developed for a Qatar based Dental Company, for mounting telescopes with maginfications on to spectacle for creating customized dental loops for Dental Practicioners.

Background

This is a high-precision optical system we developed for Wusten Purple LLC. Wusten Purple LLC is in the business of improving ergonomics for surgeons, dentists and also into dental equipment and related instruments.


Instrument was Developed for Wusten Purple LLC

This is one of our best technology/system we developed and where we took an idea into a concept, developed specifications and made it into a fully functional system. The system was completely developed in Ideas Unlimited Lab over several months of effort.

This system involved following domains of work:
- Mechanical systems (Hi-precision)
- Electronics (Lasers etc)
- Optics, Lenses etc
- Supporting software which helps in the precision computation required to operate this system.

We cannot reveal the full details of this system on the website as per the terms and agreements we have with our customer. (Also, there is a patent pending on this system, due to which we cannot share details of this invention).

However, Wusten Purple LLC has been kind enough to allow posting of pictures of the device as it was one of the fine concept/invention that has come out from us.

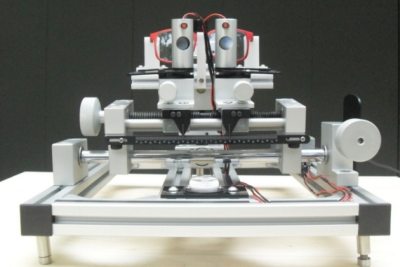

A Hi-Precision system for making, testing optical devices, developed for Wusten Purple LLC

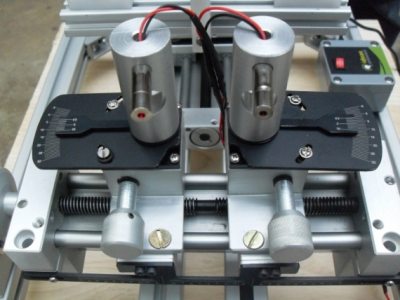

Angular verniers in the system - can provide 0.1 degree resolution for angle setting

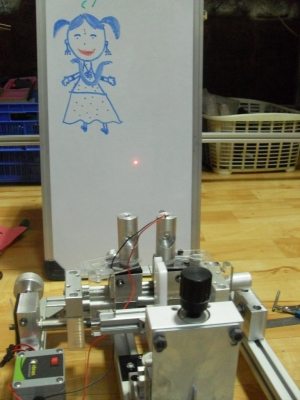

System has lasers on board for calibration, test and evaluation

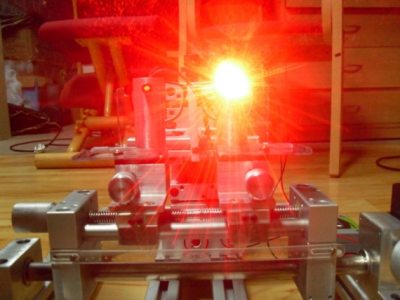

Lasers being used for calibration

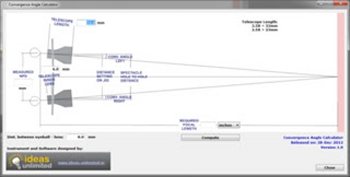

Screenshot of the software that helps use the system
