Weather proof Synthetic wooden bridge
This metal structure, engineered wood bridge is built in GRS Fantasy Park, a water theme park. The bridge uses specially made Engineered wood that is water, weather and termite proof. Design ensures safety and long life as well.

Background

We developed this novel Engineered wood bridge for GRS Fantasy Park in Mysuru. This metal/wooden bridge which would be used by people to cross a Lazy River attraction at GRS Fantasy Park, Myusuru. This water proof, climate proof, season proof Syntetic wood was being tried out as part of this project.

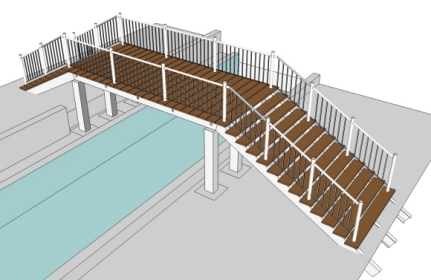

CAD Model of the wood bridge, drafted after
measuring the dimensions on site.

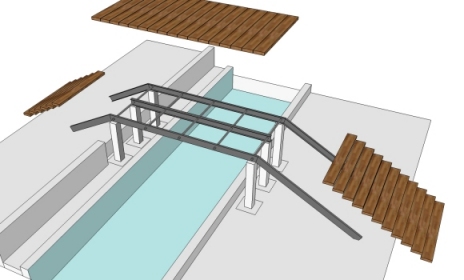

Exploded view showing how synthetic wooden planks
will be assembled on to the bridge.

The bridge's primary beams being fabricated as per the CAD design.

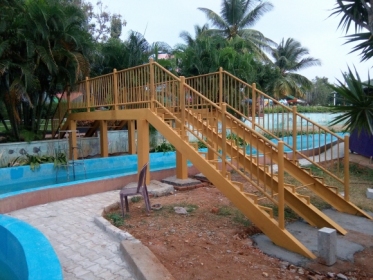

Beams/Pillars assembled and welded on site.

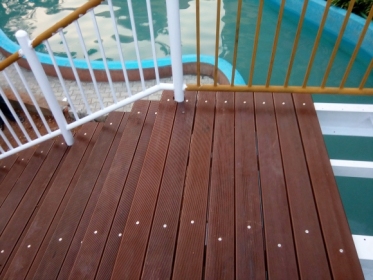

Engineered wood (weather proof, termite proof, season proof,
water proof) being assembled on to the bridge on site.

Team that played key role in design of bridge testing it!

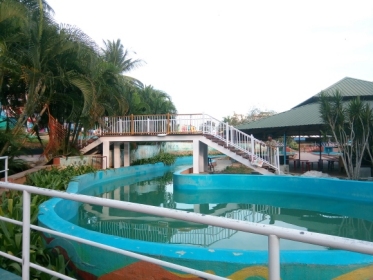

The completed bridge!
