40 pin - 1.27mm (50 mils), 2mm (79 mils) and 2.54 mm (100 mils) pitch header breakout Board


Utility PCB. Interface up to 40 pins, any pitch connector headers using this breakout supplied with all standard size berg stick headers.

Background

This Berg Stick Breakout Board acts as an adapter is useful for interfacing electronic modules which contains non standard connectors. The breakout board contains headers with different pitch sizes like 2.54mm, 2mm, 1.27mm. Quickly convert cables from different pitches using this board.

Also this board has been designed with tracks on both side so it can carry maximum amount of current.

Link to Data Sheet of this product.
This header breakout board comes can be used by developers, electronics hobyists for easy prototyping, debug purpose.


Example for using Header Breakout Board
Here, a 5V GPS module with 2.54mm pitch output connector is interfaced with 1.27mm pitch header in the breakout board which makes it easy for the developers to handle during developing phase or can be used during prototype development, testing etc.,

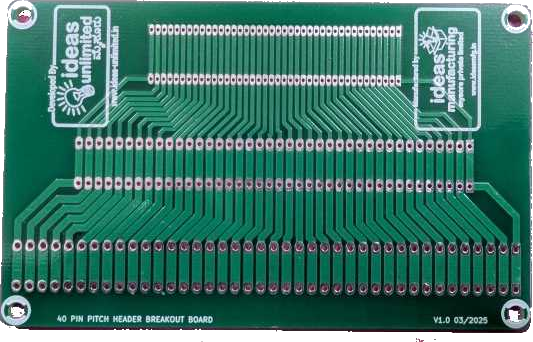

Top view of the Board

Bottom view of the Board

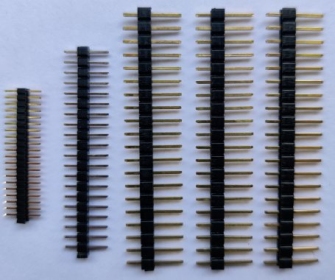

Bergsticks of pitch size 2.54mm, 2mm, 1.27mm

Product and Technology Description

The board has 1.27mm, 2mm and 2.54 mm pitch pads to which either a standard berg stick header or RMC connectors of same pitch.

Each of the type of pad can accomodate upto 40 pins.
