Software to Control Technifor Gravotech Dot Peen Engraver Machine
Technifor Gravotech DotPeen Pneumatic Engraver machine control software developed for an Assembly line automation for an MNC company. Software composes plate design in seconds and starts engraving of plate automatically.

Background

We developed a Windows based GUI software for controlling Technifor Gravotech DotPeen machine to designed ready and standard templates for engraving plates used for providing machine related info in Automotive industry, Industrial products etc.

The software is capable of scanning a QR code and populating the data to be engraved referring to a back-end database and can compose design of a plate for each product within a second and start engraving.

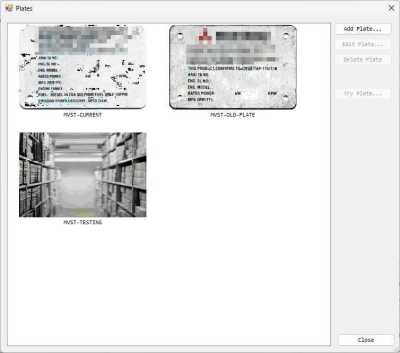

Plate Design Templates showed actual picture of plates to be engraved.

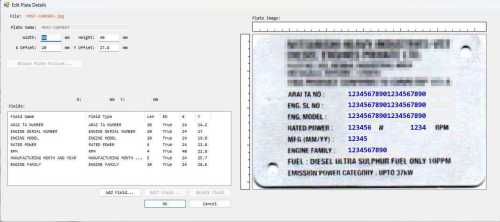

Plate Design Screen. User can add any number of fields
and can designate it as a ready field or custom text field.

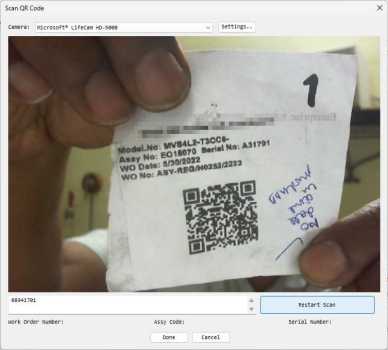

End user scans QR Code and to fetch the details of the
product from back-end...

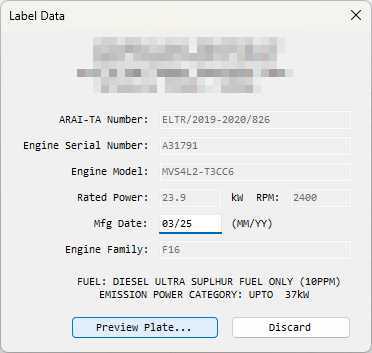

...The details fetched from backend related to the productM
shown to user for review. Next screen sofware will compose the plate...

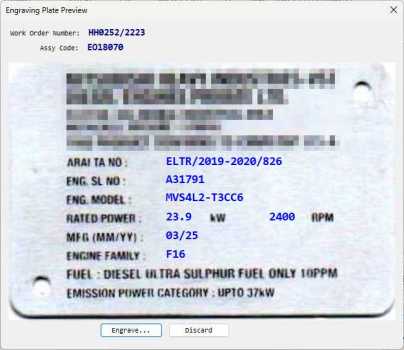

...Sample composed plate preview for end user before
going ahead and issuing the "Engrave" command.

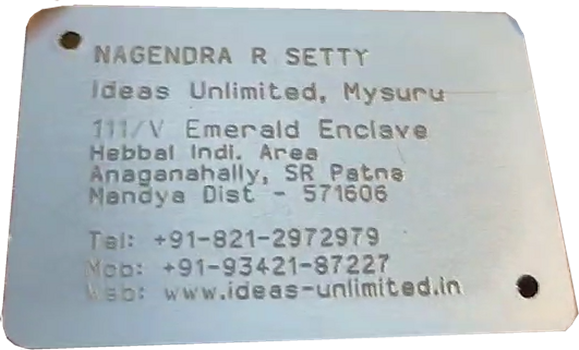

A sample engraved plate tried out after creating a template for testing the software.

The software ensures 100% error free data along with audit trail of when the plates were created and what text went on each of the plate for Quality Control purposes.

Tomorrow if plate design or shape or size changes, the end users can themselves create an engraving template/stencils. Some of the screenshots of the software shown in pictures on this page.
Video of our engraver software at work!
