High Resolution (5MP) Intra-oral camera with controlled illuminators
High resolution dental Camera which can shoot 5MP picture/video, at a range of 5-20 mm distance! It can also interfaced to a conferencing app like Zoom/Google Hangouts to beam video too!

Background

High Resolution Intra-Oral Dental Camera which produces excellent images and videos used by dentists to examine patients mouth in as detailed way as possible. The Video/Still pictures from this camera may be seen real-time on monitors or laptops or via video conferencing software from anywhere in the world.

It is ergonomically designed, USB powered along with self illumination with Intensity control cimes with small and portable form factor, therefore it can be carried by dentists wherever they go! It is also a plug-n-play, so no extra software needs to be installed if you have an inbuilt windows camera app.

Dr Nitin V Muralidhar, MDS-Orthodontics & Dentofacial Orthopedics

JSS Academy of Higher Education and Research, Mysuru


This concept was envisaged by Dr Nitin V Muralidhar (Professor, Dental, JSS Dental College & Hospital, Mysuru) to aid in development of an efficient patient management system to maintain hospital records and also to help in remotely perform Dental procedures. Ideas Unlimited supported in developing it into a product.
Video of the Intraoral Dental Camera being used!

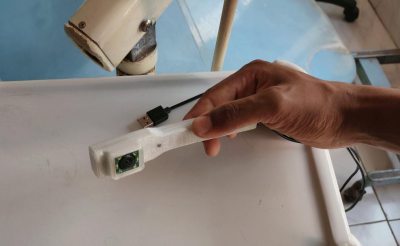

Plug and Play Intra-Oral Camera!

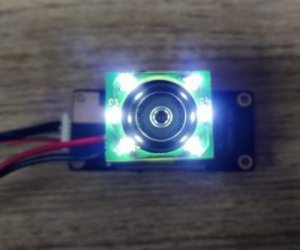

In built LED Illiumination control for high quality capture.

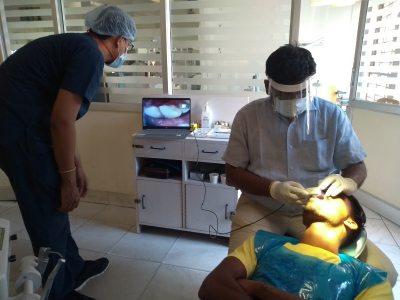

Dental Practitioner Capturing images with intra-oral camera

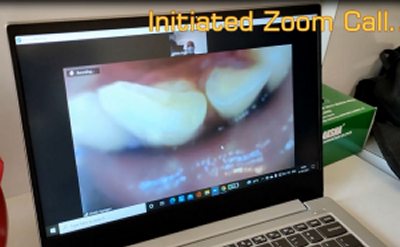

Real time Viewing via Zoom Call

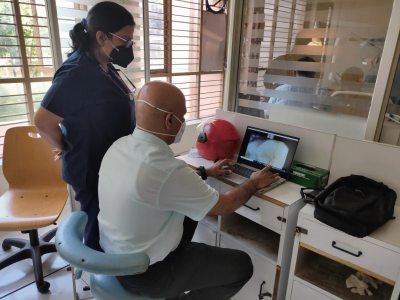

Dental Procedure being Monitored Remotely

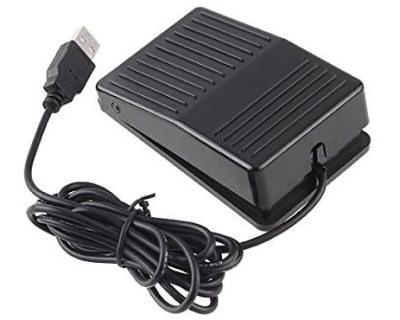

Programmable Foot Pedal to assist in capturing image/video.

Product and Technology Description

The Intra-Oral Camera comes with 5 Mega Pixel High Resolution Video/Still Picture Camera.

No External power supply needed and Camera app on Windows 10 can be used to access High resolution Video and Images. It has very small Focal Length of 5-15 mm from object with High quality Macro Lens. The camera is also HTML 5 Compatible, so you can directly stream video on any Video Conferencing app like Zoom, Google Meet, Skype, Microsoft Teams etc.

The device also comes with an optional programmable foot pedal which helps in triggering the capture of image or record video with your foot.

How it was built?

Click on left/right buttons to scroll through the pictures and description to see how it was built!
