Project KOORMA: Smart features of the Koorma Platform

Koorma platform has smart concepts implemented like automatic turn, headlights, brake, reverse lights control. It also has extensible Payload framework on chassis and plug-n-play remote control extention to control payloads!

Background

A rugged, waterproof robotic chassis built for both military and civilian applications, supporting autonomous and remote-controlled modes.

To enhance both functionality and visual feedback, multi-color LED indicators are integrated into the chassis. These LEDs serve a system status, operational mode, and diagnostic alerts,comms status and enhance operational visibility.

This page showcases following smart features:

Smart Lights Features

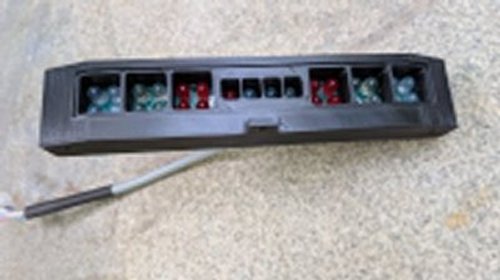

Led indicators feature installed to our koorma chassis

Led indicators

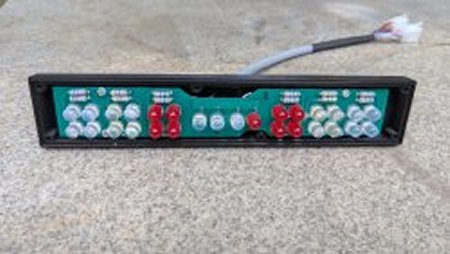

front view of Led indicators


Video of our Koorma smart features at work!

Smart Lights Features

  1. LEDs ON Indication
    • White, Red -koorma booted and currently stopped
    • White, Red, Green - koorma booted, currently stopped, and RF remote has initiated communication
    • White, Green - koorma is powered on and RF remote is successfully connected
  2. Left Amber LED ON
    • Indicates: koorma is moving or turning towards the left.
  3. Right Amber LED ON
    • Indicates: koorma is moving or turning toward the right.
  4. Left + Right Amber LEDs ON
    • Indicates: koorma is rotating on-axis (in-place rotation).
  5. White LED ON
    • Indicates: koorma is moving in reverse direction.
  6. White + Left Amber LEDs ON
    • Indicates: koorma is moving in reverse left direction
  7. White + Right Amber LEDs ON
    • Indicates: koorma is moving in reverse right direction.
  8. Sharp Turn Indications - Forward Right (Right Amber slow blink)
    • Behavior: koorma performs a sharp right turn.
    • Action: Left wheel is stopped, right wheel moves forward.
  9. Sharp Turn Indications - Forward Left (Left Amber slow blink)
    • Behavior: koorma performs a sharp left turn.
    • Action: Right wheel is stopped, left wheel moves forward.
  10. Sharp Turn Indications - Reverse Right (Right Amber slow blink)
    • Behavior: koorma performs a sharp right turn in reverse.
    • Action: Right wheel is stopped, left wheel moves in reverse.
  11. Sharp Turn Indications - Reverse Left (Left Amber slow blink)
    • Behavior: koorma performs a sharp left turn in reverse.
    • Action: Left wheel is stopped, right wheel moves in reverse.

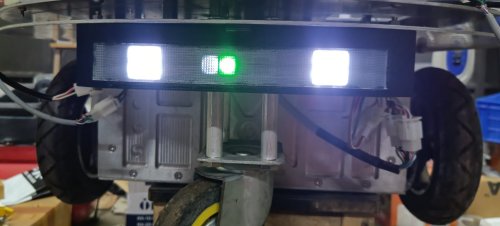

Koorma booted, currently stopped and RF remote has initiated communication

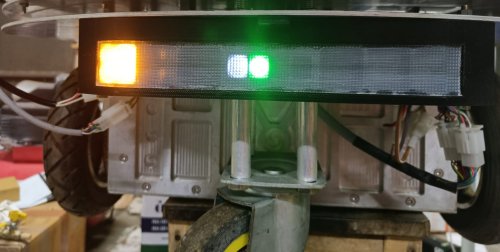

Koorma is turning towards the left.

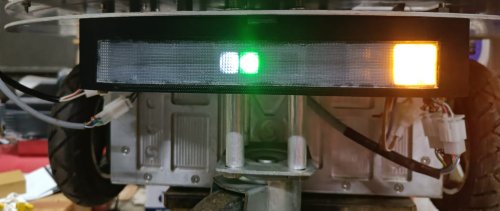

Koorma is turning towards the right.

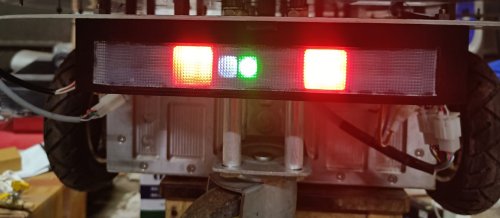

Koorma is moving in reverse direction.

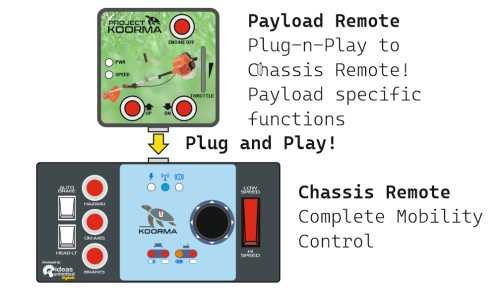

Plug-n-Play Payload Remote!

The Payload remote control just plugs into the Mobility Remote of Koorma and piggy backs on its RF communication stack to send commands to the payload.

Example:
The payload remote of brush cutter has:

Plug and Play Weed cutter Payload remote that can be plugged into mobility remote and used!

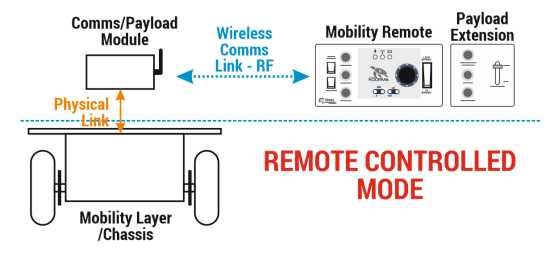

Design Architecture of Koorma Platform showing how extensible remote framework works!
