Snow Park Merry Go Round (Low Voltage DC Operation, High powered)
Low voltage DC (safe) Merry go round built for GRS Snow Park, Mysuru. This ride operates at low DC voltage, but packs 2 kilowatts power to drag visitors sitting on tubes over icy surface! Lots of fun with complete safety too!

Background

GRS Snow Park is one of the coolest attractions in Mysuru, to cool off during a hot summer day! This Snow park is run by GRS Group. It is a world class attraction built to very high standards in Mysuru city.

GRS Snow Park, Mysuru

GRS Fantasy Park, Mysuru

This merry go around was built as a fun attraction inside snow park which operates with low Voltage DC (completely safe to operate in a watery/icy environment). This ride has a 2 kilowatt motor and a rugged gearbox that can handle load of upto 5 people on it.
Video of the Low Voltage, High power BLDC Motor based Merry Go Round at GRS Snow Park

If regular AC Supplies are used in snow park, it may lead to a risk of shock hazard.

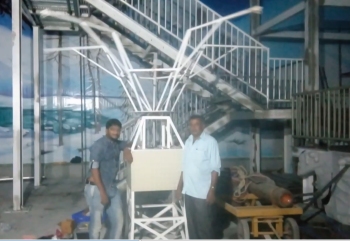

Installation of the Merry Go Round

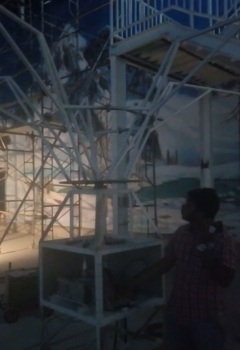

Installation of the Merry Go Round

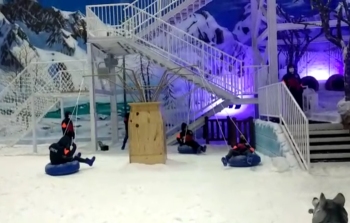

Final Result! Functional, Low Voltage Merry Go Round at GRS Snow park
that operates at -20 Degrees C !

Product and Technology Description

Low voltage DC operation ensures that there is no risk of electrocution due to the watery/icy environment even if the power supply is shorted unintentionally. This entire system was designed, engineered and developed in our lab. Special care was taken to paint it with Marine grade paint, by GRS so that the unit does not rust in freezing cold temperatures! This ride is designed to be ultra-safe to be operated in a water/icy environment!

At the ride's heart is a 2 kilowatt BLDC motor (indestructible) along with a powerful high torque gearbox that can survive the uneven loads/shocks faced. The BLDC ensures fail safe operation of the motor even under irregular loads and changing of speeds continuously. The system is powered using a 48V DC supply (low voltage DC) and so safe to use in wet, icy and watery environment of the Snow park. The motor speed can be controlled and also its direction can be reversed if needed by the operator.
