Harvested Rain Water Fed Indoor Swimming pool
This indoor, rain water harvesting fed swimming pool was completely modeled, designed in 3d, and then built to look as per drawing. This pool is fed using rain harvested water from the building next to it. Modeled and built to the last detail!

Background

This novel Indoor swimming pool was built as a Low cost design, yet aesthetically appealing concept and to make its running also low cost, and environment friendly, it is fed with rain water harvested from the building next to it! A normal good monsoon, the pool can be filled fully!

The swimming pool was completely 3d modelled to scale/size to the last detail of the color of the building, tiles to be used, metal fabrication work to be done for the light roof, glass walls etc and also including the filtration system.

Overall cost of the swimming pool was drastically different from the cost of a turnkey execution of the same project.

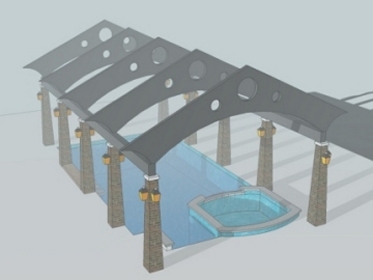

Light structure around the pool, designed with rustic
pillars and metal structure concept in mind
(Concept design in CAD)

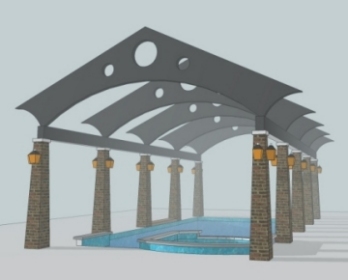

The design was to be aesthetically appealing, while being low cost
(Concept design in CAD)

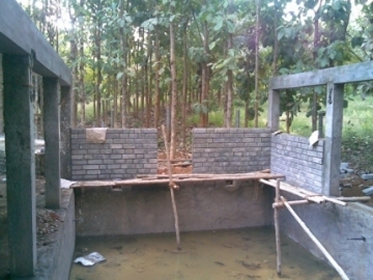

Construction of RCC Wall and flooring of the pool bed.

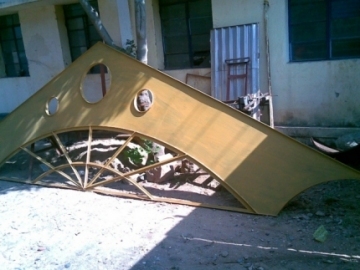

Metal Beams being fabricated exactly as per design.

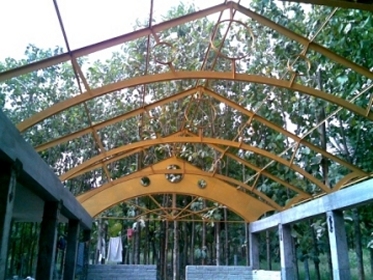

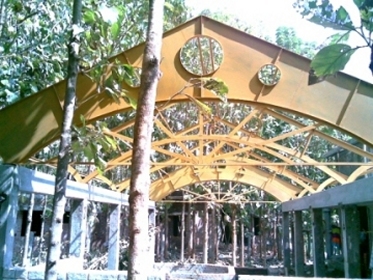

Roof beams and purlanes getting assembled over the pillars.

Another view of the Roof beams, purlanes Assembled.

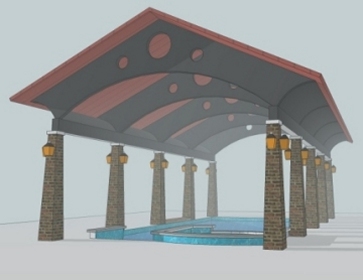

CAD Model now showing the roofing material,
colors and final details

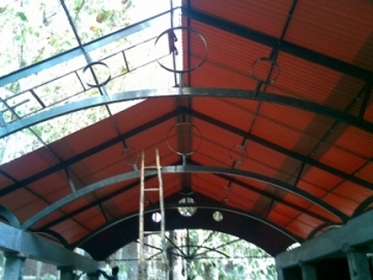

Low Cost PVC roof getting assembled.

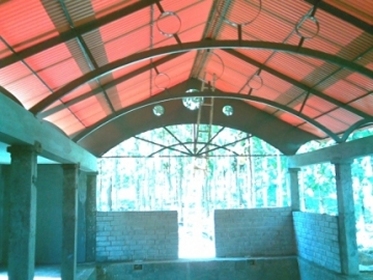

Roof Assembly complete!

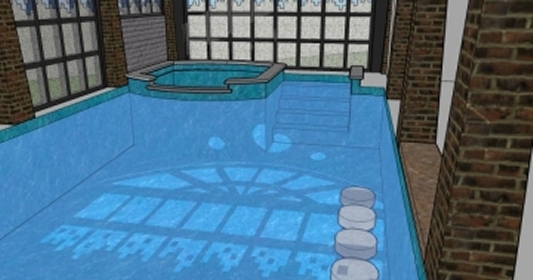

Inner Detailing of the Pool in CAD - To be realised later!

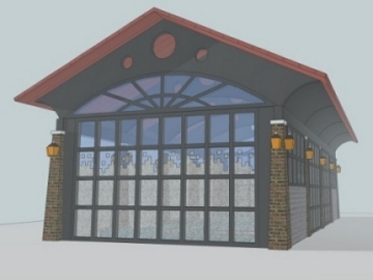

Light Metal/Glass walls in design of the swimming pool in CAD

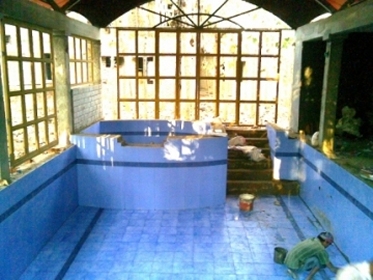

Pool tiling work in progress with exact same color,
detailing as in CAD. Meanwhile, metal/Glass
wall structure is also being fabricated.

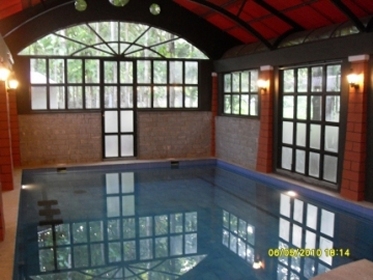

The finished pool filled with water, ready for use!
