Clear transparent cover for Industrial Turmeric Sieve
This cover ensures that Turmeric doesn't spread around the entire room when the industrial Sieve is switched on, and instead contains it to the top of the Sieve itself.

Background

An open industrial sieve would spread fine turmeric dust across entire room, causing dust to settle down all around, due to the vibrating nature of the sieve.

A solution was designed to address this problem and built. A structure to cover the sieve without actually making contact with the vibrating sieve itself.

This concept worked out very well! Not only did it reduce the dust in the room, it prevented wastage of the powder as well!

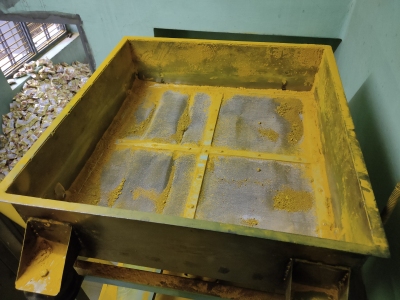

The Open Industrial Turmeric Sieve

Clear Transparent Light weight cover in Polycarbonate
with Stainless Steel (food grade) structure.

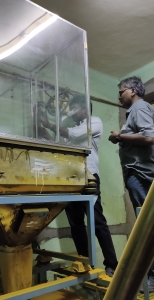

System being mounted on site.

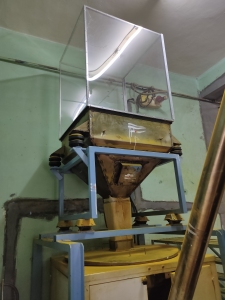

Final inspection before commissioning

Further a bottom cone was precisely machined which ensures there is no spillage of the material while Sieve is operational.

Amidst all these constraints, the legs of this sieve were mounted with special vibration damper pads, so entire system doesnt move around while in operation.

Salient Features:

Clear Transparent Cover for an Industrial Turmeric Sieve

Click on left/right buttons to scroll through the pictures and description to see how it was built!
