Simple Solar Cell graphic poster, that lights up and animates to explain how a solar cell works! Built by an apprentice in our lab!
Background
This is an animated display run by a small microprocessor with embedded software written to control the exhibit. When a visitor presses button of this exhibit, it shows the Solar Cell's power generation in the chart by visually lighting up lights in a sequential manner which explains the science behind the solar cell.
This project was built by an apprentice in our lab with our support.
Copper Clad boards etched to solder SMD LEDs as per drawing!

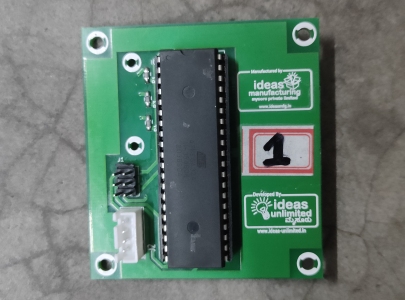

Microcontroller board that drives this exhibit.

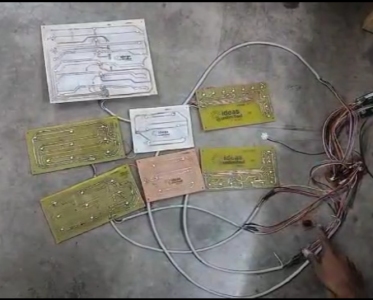

LED Boards under testing

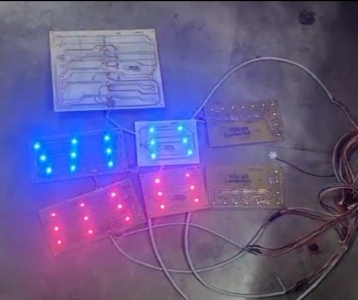

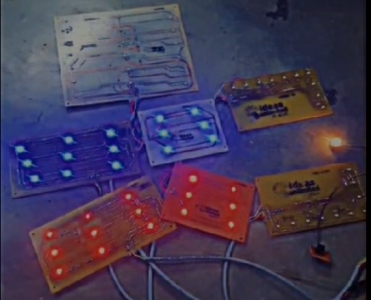

LED boards rigged together and tested.
Finished product with printed exhibit mask on top in both Kannada and English.
This project was developed for an NGO which is into building Scientific Exhibitions, Museums and upgrade Science Demonstration infrastructure in schools called Deenabandhu. As part of an Energy themed Science Museum they were setting up this exhibit was developed by Ideas Unlimited, Mysuru.
Deenabandhu is a charitable Non-Profit Organization located in Chamarajnagar. Deenabandhu works towards the education and rehabilitation of orphan, destitute and estranged children. The trust is also into Science, innovation and teaching Science to school children and other activities.
Deenabandhu Trust, Chamarajanagar, Karnataka

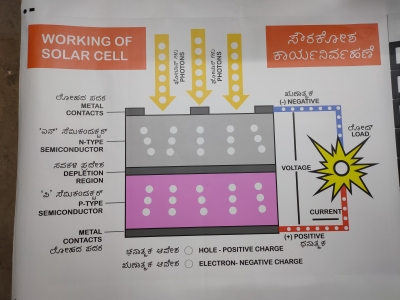

The finished product had a beautifully designed printed mask which explained parts of the Solar cell in both Kannada and English, on which the lights display the working in animated manner.
Animated Solar Cell Poster
Finally it was installed on wall at the Energy Museum, with a button for the visitors to Press.
