230-110V, 500W Transformers for imported Medical Equipment
High quality transformer that can be used with imported Oxygen Concentrators that operate at 110V AC. Made from high quality copper, this transformer can be used continuously with medical equipment.

Background

This product was made specifically for use with medical equipment imported from USA/Canada(110V Electrical standard) during Covid Emergency situation. The device has a High Quality Copper wire based transformer that can convert up to 500 Watts from 230V to 110V. It has an output universal power socket, that can be used readily with most imported equipment.

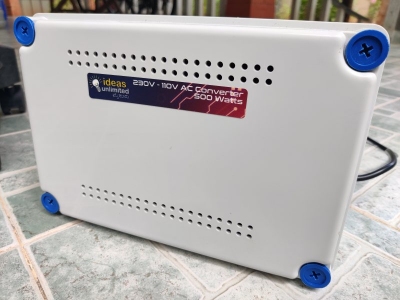

Front view of the medical transformer

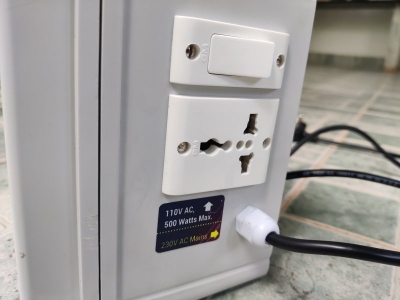

Medical transformer with input 230V supply
and output 110V socket

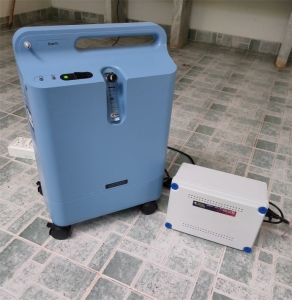

Philips Respironics EverFlo Oxygen Concentrator 5LPM
operating with the transformer

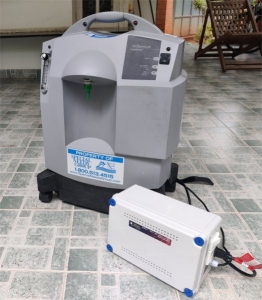

Medical transformer with Respironics
Millennium M10 Home Oxygen System

Specifications of Medical Transformer

This Transformer for Medical usage is suitable for Indoor installation (ambient 50deg C) Copper shield between Prim & Secondary for Isolation. Fibre glass coated strips (electrolytic grade copper) Varnish Impregnated. The transformer is built for countinuos usage.

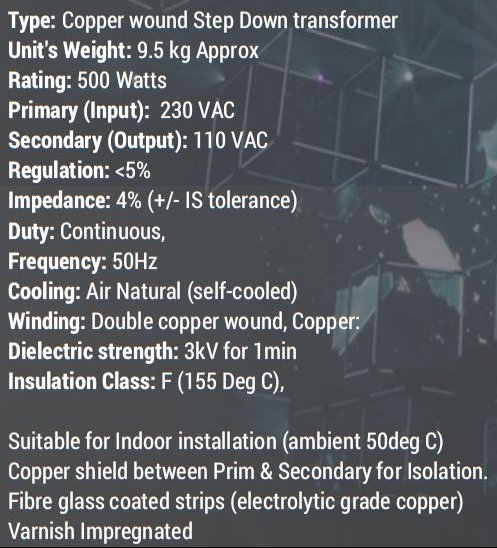

Product specifications of the Transformer

TBD - Title of the VIDEO

How it was built?

Click on left/right buttons to scroll through the pictures and description to see how it was built!
